Description
MODEL NUMBER
WYS012GMFI20RL
R410A PRE-CHARGED OUTDOOR UNIT
Accommodating refrigerant line lengths up to 25 ft. Per circuit

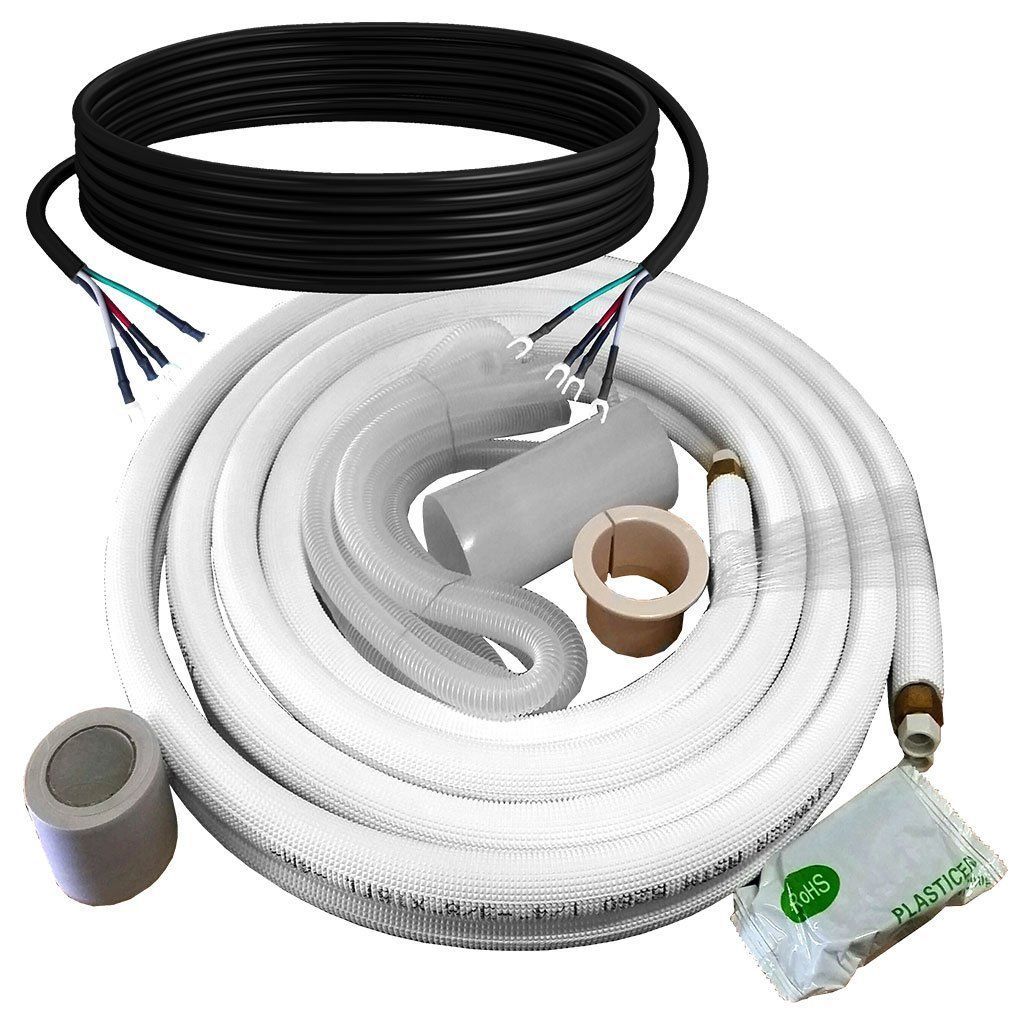

INSTALLATION KIT:
The installation kit is necessary for the system to function. Do not select the “Without installation kit” option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10ft drain hose, wall cap, sleeve, and putty.
SUMMARY
- Ultra High Efficiency Inverter+ ductless mini split heat pump system
- Cooling capacity: 12,000 BTU/H with 20.5 SEER/10.5 EER efficiency
- Heating capacity: 12,000 BTU/H with 10 HSPF efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- AHRI Estimated Annual Operating Costs:
- Cooling: $77.00
- Heating: $254.00
PERFORMANCE
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 3,800~12,850 BTU/h
- Cooling SEER: 20.50 BTU/w
- Heating Rated Capacity: 12,000 BTU/h
- Heating Capacity Range: 2,730~12,500 BTU/h
- Heating HSPF4/HSPF5: 10.0 / 8.0 BTU/w
- Refrigerant Type: R410A/28.6 oz.
- Suitable Area: 250~450 Sq. F

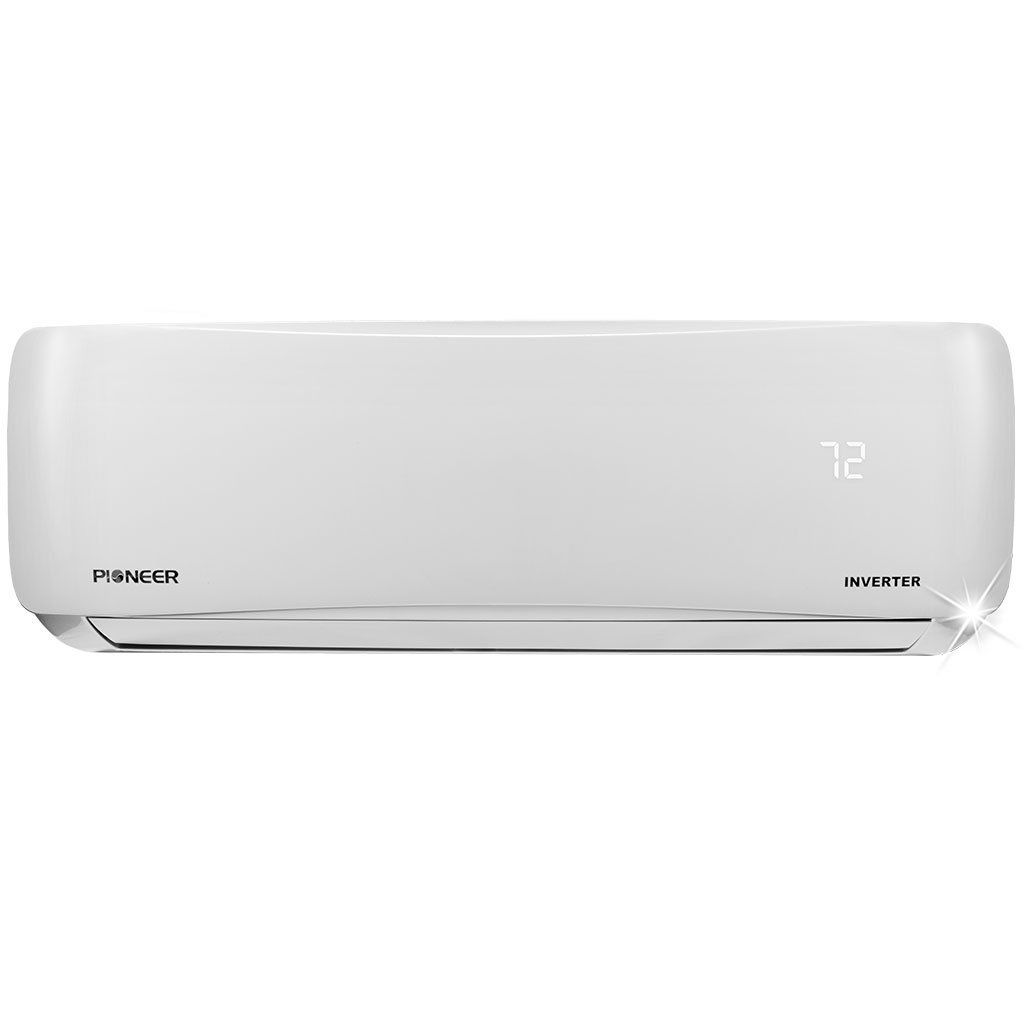

INDOOR UNIT
- Part Number: WS012GMFI20HLD
- Air Flow (Hi/Med/Lo): 317 / 207 / 144 CFM
- Sound Level (Hi/Med/Lo): 37 / 30 / 22.5 dB(A)
- Net Dimensions (WDH): 31″-1/2 x 7″-3/8 x 11″-5/8 Inches
- Carton Dimensions (WDH): 34″-1/2 x 11″-1/4 x 15″ Inches
- Net / Gross Weight: 19.8 / 25 Lbs

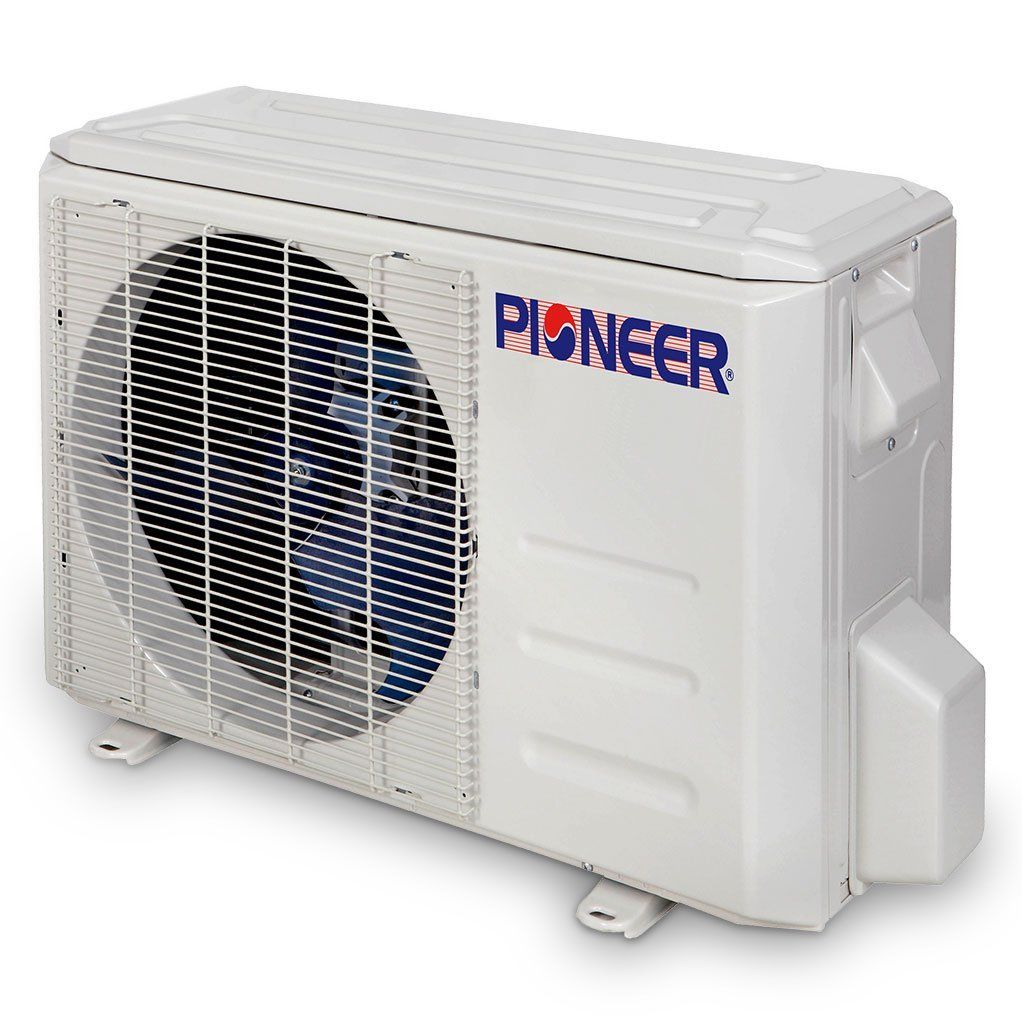

OUTDOOR UNIT
- Part Number: YN012GMFI20RPD
- Breaker Needed: 15A (double-pole)
- Sound Level: 55.5 dB(A)
- Net Dimensions (WDH): 30″-1/8 x 11″-7/8 x 21″-7/8 Inches
- Carton Dimensions (WDH): 34″-7/8 x 13″-1/4 x 24″ Inches
- Net / Gross Weight: 59.3 / 64.8 lbs

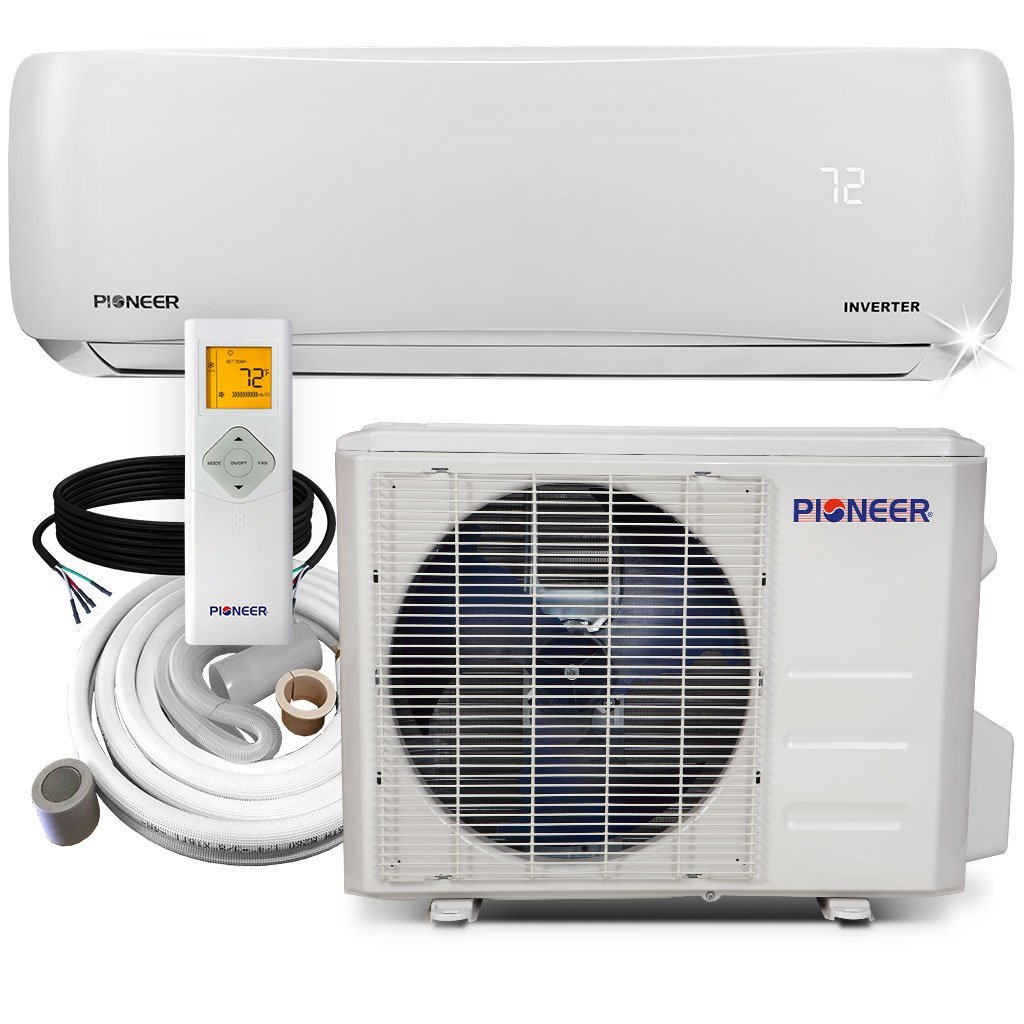

WHAT’S INCLUDED
- Indoor Unit
- Outdoor Unit

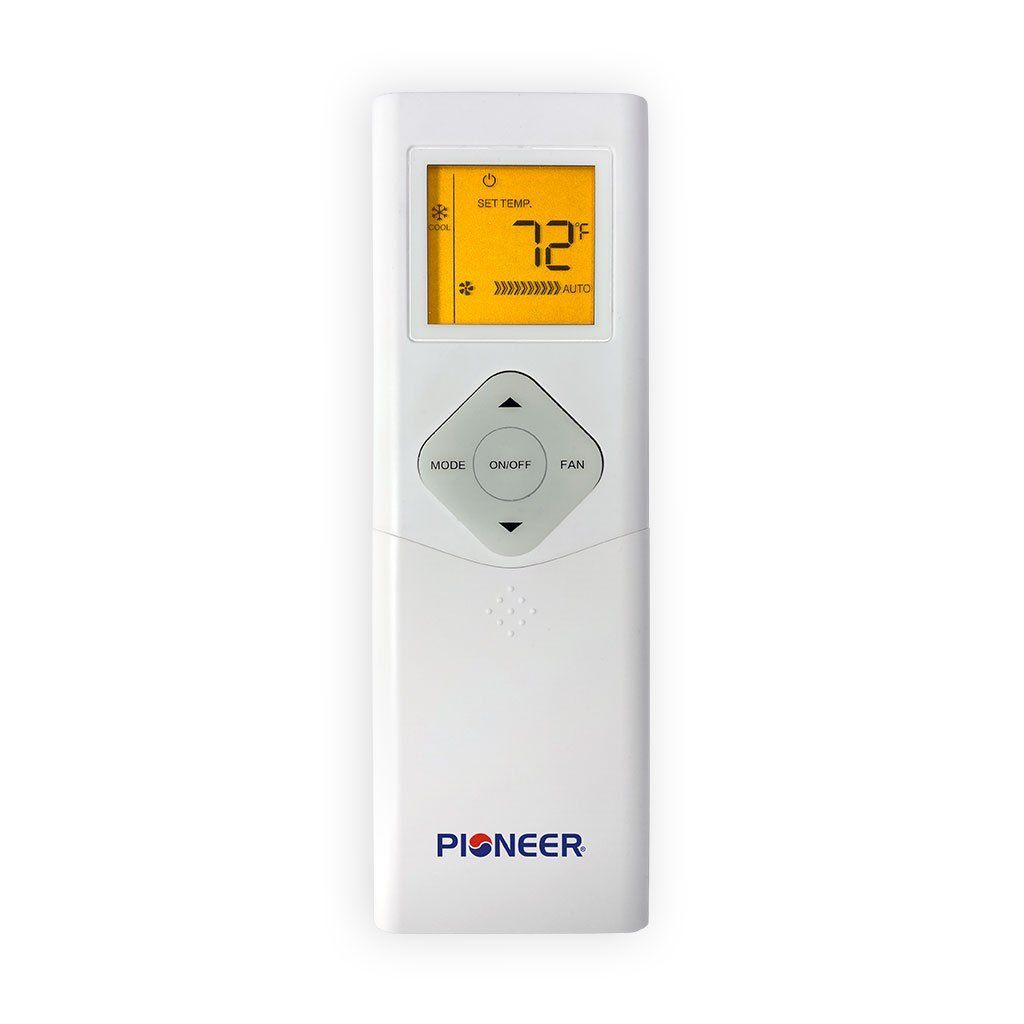

- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
OUR GUARANTEE
- 5 year parts limited warranty
- 5 year compressor limited warranty
