PIONEER® 24,000 BTU 17 SEER 230V Ductless Mini Split
PIONEER® 24,000 BTU 17 SEER 230V Ductless Mini Split - Outside Unit
PIONEER® 24,000 BTU 17 SEER 230V Ductless Mini Split
PIONEER® 24,000 BTU 17 SEER 230V Ductless Mini-split - Image 4
PIONEER® 24,000 BTU 17 SEER 230V Ductless Mini Split - Addons

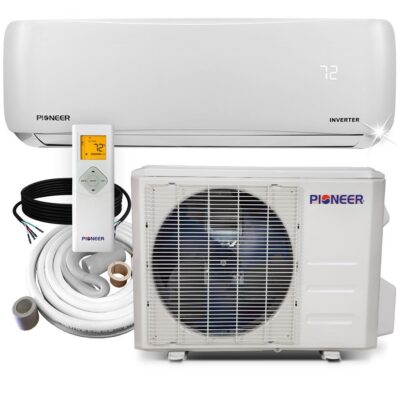

  1. PIONEER® 24,000 BTU 17 SEER 230V Ductless Mini Split

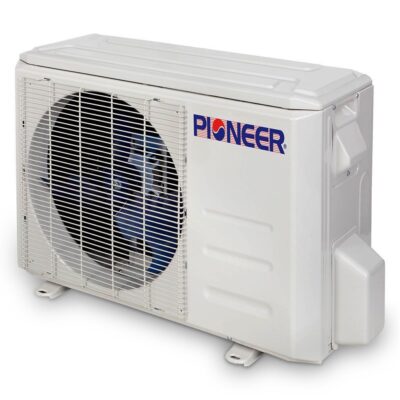

  2. PIONEER® 24,000 BTU 17 SEER 230V Ductless Mini Split - Outside Unit
  3. PIONEER® 24,000 BTU 17 SEER 230V Ductless Mini Split
  4. PIONEER® 24,000 BTU 17 SEER 230V Ductless Mini-split - Image 4
Out of Stock

PIONEER® 24,000 BTU 17 SEER 230V Ductless Mini-split

$1,247.99 – $1,567.99

Description:
Pioneer® 24,000 BTU 17 seer 230v Ductless Mini-split with Air Conditioner & Heat Pump system full set

SKU: WYS024GMFI19RL-16 Category: Tags: , , , ,

Description

MODEL NUMBER

WYS024GMFI19RL

R410A PRE-CHARGED OUTDOOR UNIT

Accommodating refrigerant line lengths up to 25 ft. Per circuit

INSTALLATION KIT:

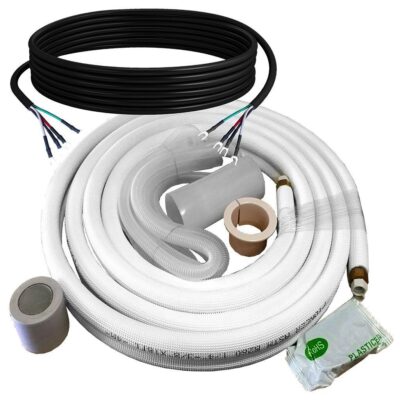

The installation kit is necessary for the system to function. Do not select the “Without installation kit” option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10ft drain hose, wall cap, sleeve, and putty.

SUMMARY

  • Ultra High Efficiency Inverter+ ductless mini split heat pump system
  • Cooling capacity: 24,000 BTU/H with 17 SEER efficiency
  • Heating capacity: 24,000 BTU/H with 10 HSPF efficiency
  • Voltage: 208~230V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $189.00
    • Heating: $561.00

PERFORMANCE

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 24,000 BTU/h
  • Cooling Capacity Range: 6,350~31,050 BTU/h
  • Cooling SEER: 17.0 BTU/w
  • Heating Rated Capacity: 24,000 BTU/h
  • Heating Capacity Range: 7,200~25,000 BTU/h
  • Heating HSPF4/HSPF5: 9.5 / 8.0 BTU/w
  • Refrigerant Type: R410A/30
  • Suitable Area: 650~900 Sq.F

INDOOR UNIT

  • Air Flow (Hi/Med/Lo): 589 / 450 / 353 CFM
  • Sound Level (Hi/Med/Lo): 48 / 42.5 / 34.0 dB(A)
  • Net Dimensions (WDH): 42.52 x 8.9 x 13.19 Inches
  • Carton Dimensions (WDH): 45.47 x 16.34 x 12.6 Inches
  • Net / Gross Weight: 30.14 / 39.6 lbs

OUTDOOR UNIT

  • Sound Level: 58.0 dB(A)
  • Net Dimensions (WDH): 33.27 x 15.55 x 27.64 Inches
  • Carton Dimensions (WDH): 38.0 x 15.5 x 30.51 Inches
  • Net / Gross Weight: 104.94 / 111.98lbs

WHAT’S INCLUDED

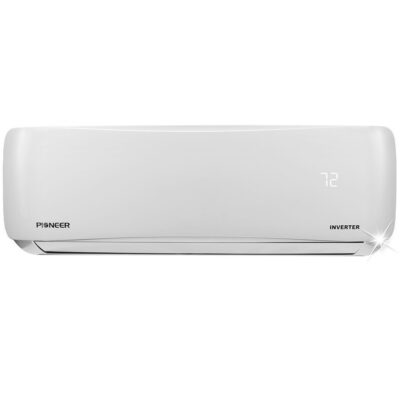

  • Indoor Unit
  • Outdoor Unit

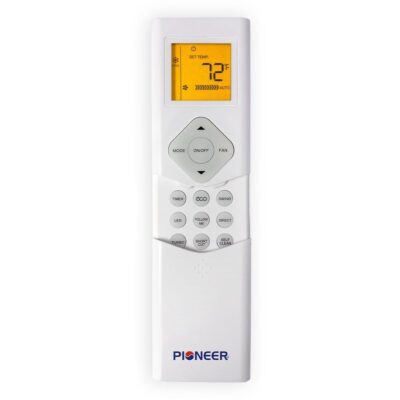

  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty
  • 5 year parts limited warranty
  • 5 years compressor limited warranty
